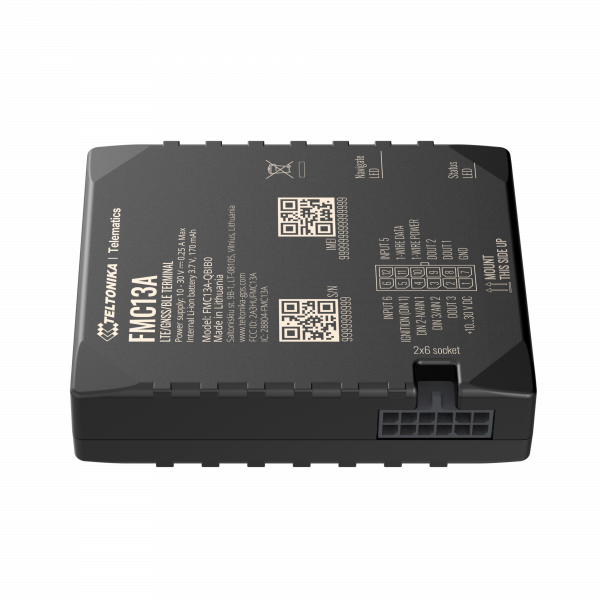

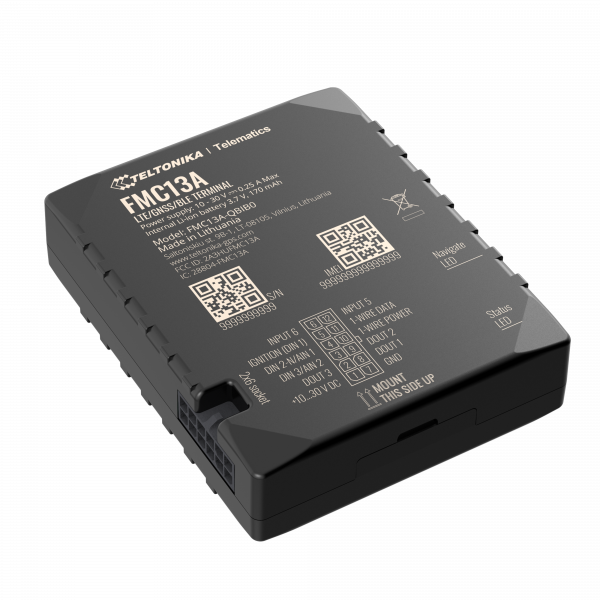

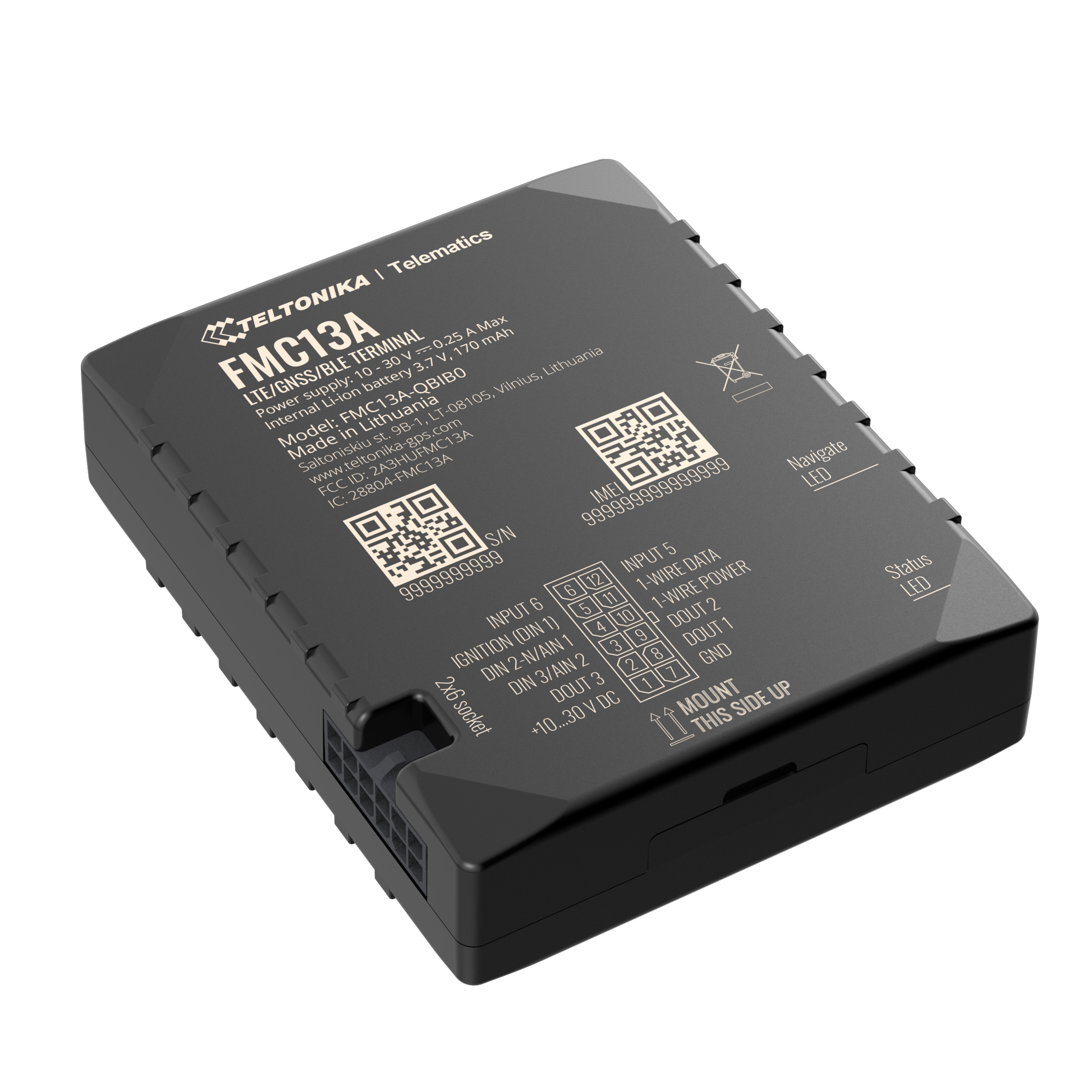

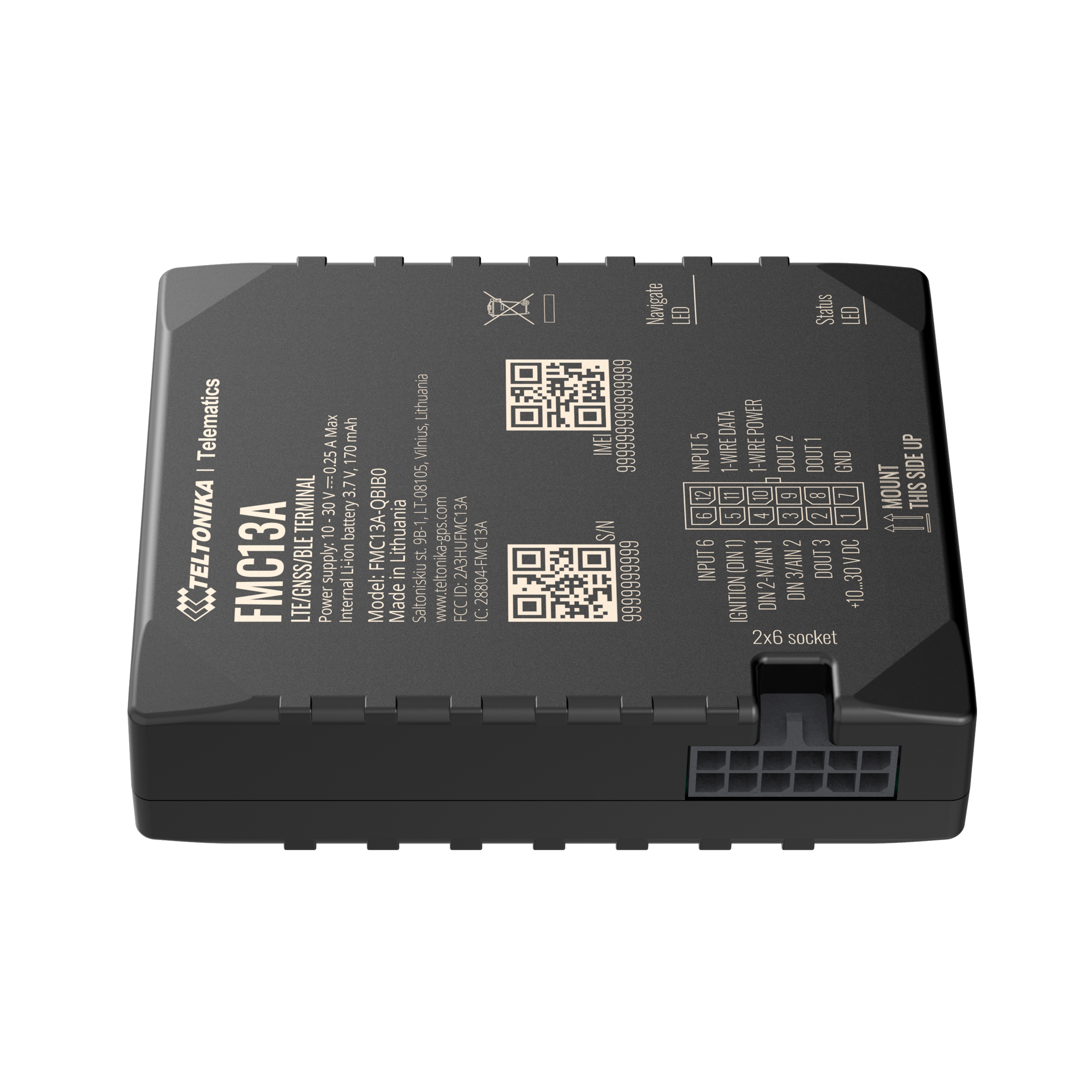

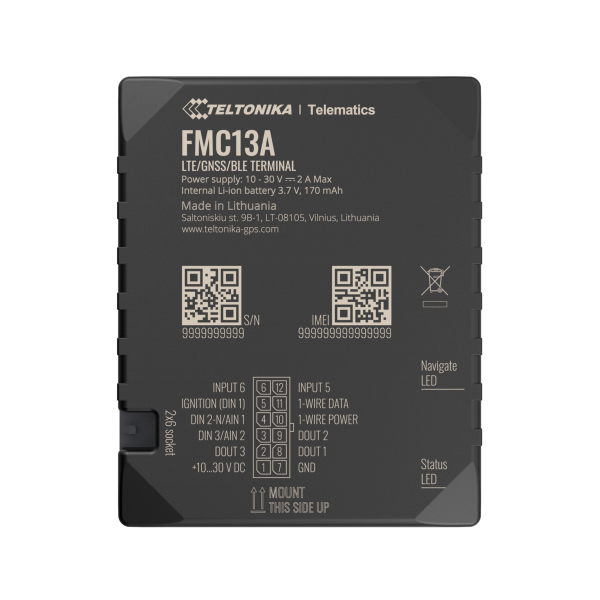

Teltonika OBD GPS Tracker FMC13A
$100.00 – $1,040.00
Features and uses of the FMC13A
Advanced 4G LTE Cat 1 tracker with flexible inputs designed for North America
Reliable 4G LTE Cat 1 network coverage – guaranteed future-proof network support for your fleet
Blocking engine remotely among the numerous available fleet control measures
Reading fuel, odometer, RPM, engine temperature and more data from light & electric vehicles, trucks, buses and special machinery
| More Details | |
| Device | Buy only device. Amount without subscription |
| Device with Monthly Subscription | Buy a device and monthly subscription basis. Amount contains device and Monthly Subscription |
| Device with Yearly Subscription | Buy a device and Yearly Subscription. Amount contains for device and Year subscription |
Product Description
Reliable 4G (LTE Cat 1) connection with fallback to 3G (UMTS) and 2G (GSM) networks
Impulse input for fuel flow meters data reading and precise fuel usage control
Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
- Configurable DIN/AIN for flexible remote monitoring and control
- CAN data reading from vehicles and specialized transport (with CAN adapter)
- Allows device to work without external power source
- Negative input will allow easier installation of accessories
- Impulse inputs for fuel flow meters data reading
Additional Information
| Subscription | Device, Monthly, Yearly |
|---|
Specifications
| MODULE | |
| Name | FMC13A-QBIB0: Quectel EG91-NA with Teltonika TM2500 |
| Technology | LTE (CAT1) / UMTS / GNSS / Bluetooth |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, QZSS,AGPS |
| Receiver | Tracking: 33 channels |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 2.5 m CEP |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| CELLULAR | |
| Technology | LTE Cat 1, UMTS |
| Transmit power | Class 4 for GSM850/900: 23±2dBm
Class 1 for GSM1800/1900: 20±2dBm Class 3 for LTE-TDD: 23±2.7dBm Class 3 for LTE-FDD: 23±2.7dBm |
| 3G bands | WCDMA: B2/B4/B5 |
| 4G LTE Cat 1 bands | LTE FDD: B2/B4/B5/B12/B13 |
| Data transfer | LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
UMTS: WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL) |
| Data support | SMS (text/data) |
| POWER | |
| Input voltage range | 10 – 30 V DC with overvoltage and reverse polarity protection |
| Internal Back-up battery | 170 mAh Li-Ion, 3.7 V battery (0.63 Wh) |
| BLUETOOTH | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support |
| PHYSICAL SPECIFICATION | |
| Dimensions | 77 x 62 x 20 mm (L x W x H) |
| Weight | 71,5 g |
| OPERATING ENVIRONMENT | |
| Operating temperature (without battery) | -20 °C to +85 °C |
| Storage temperature (without battery) | -20 °C to +45 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| INTERFACE | |
| Digital Inputs | 3 |
| Negative Inputs | 1 (Digital Input 2) |
| Impulse Inputs | 2 (Digital Input 1, Digital Input 2) |
| Digital Outputs | 3 |
| Analog Inputs | 2 |
| CAN Adapter inputs | 1 |
| 1-Wire | 1 |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
